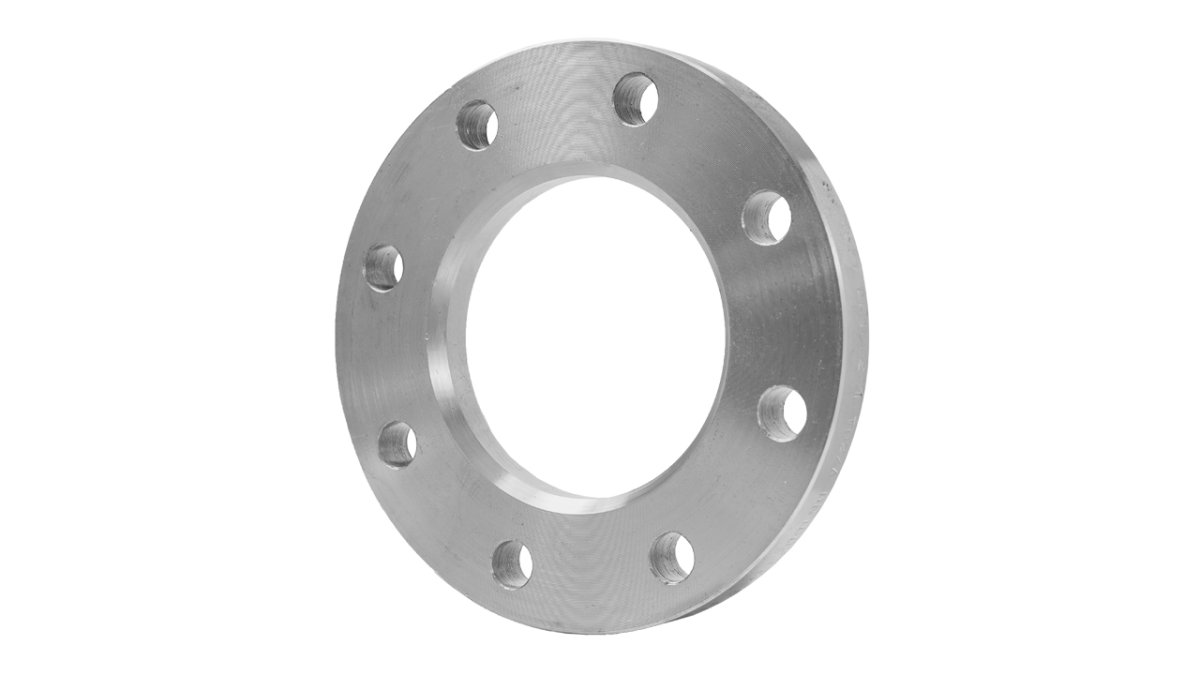

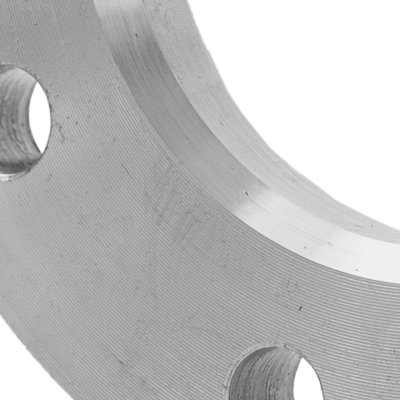

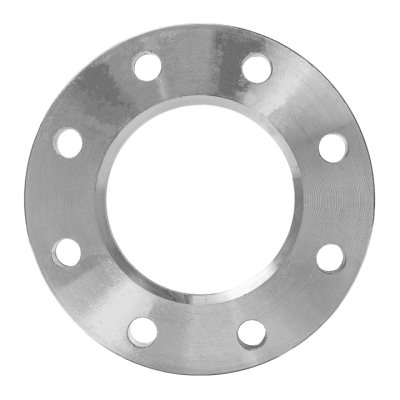

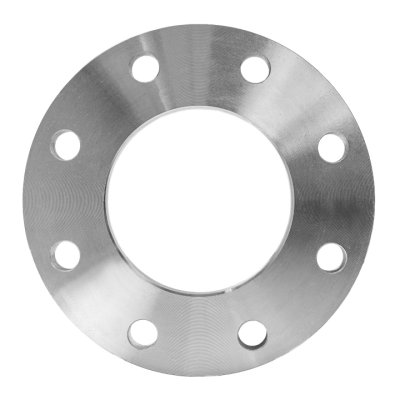

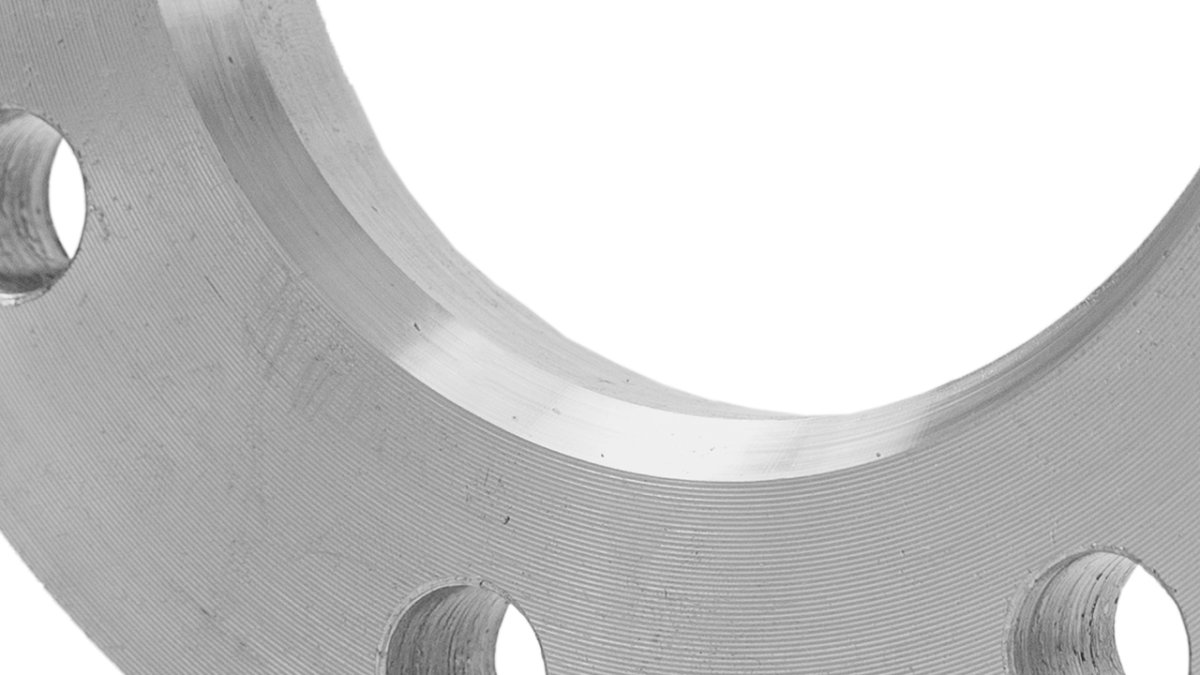

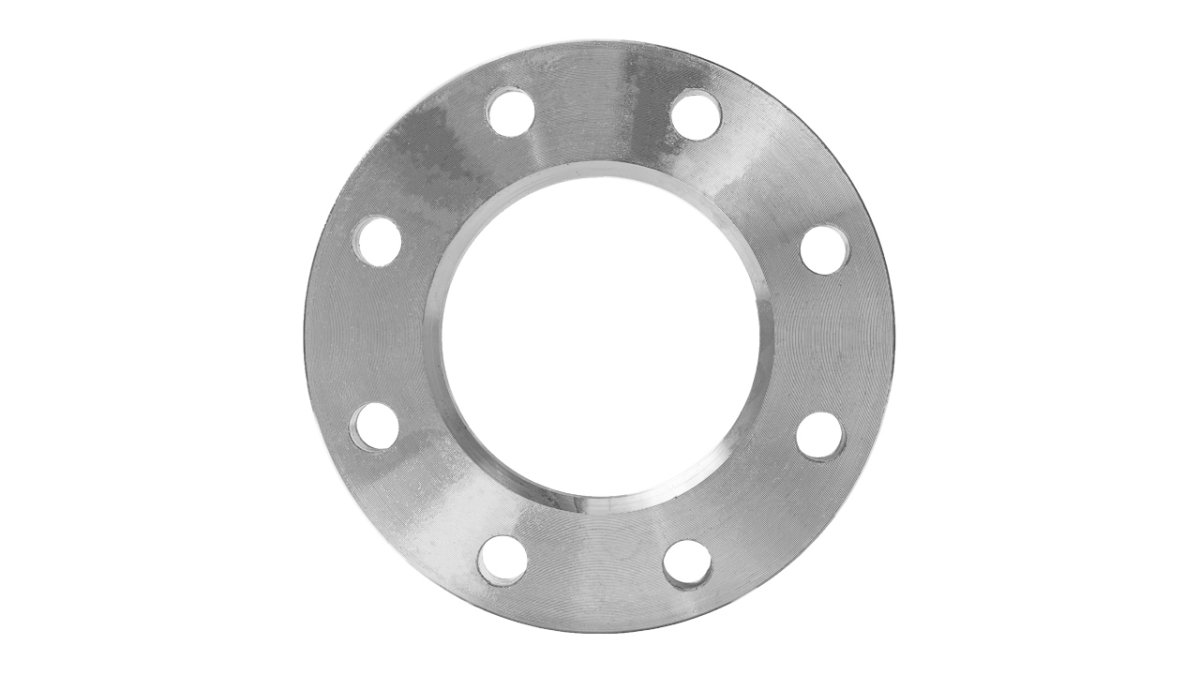

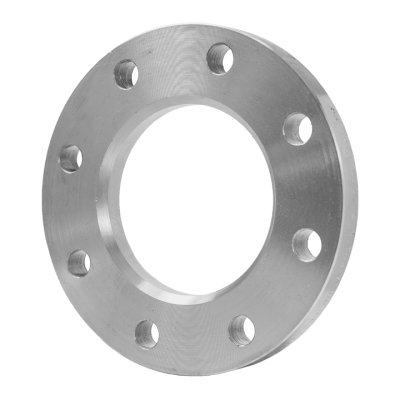

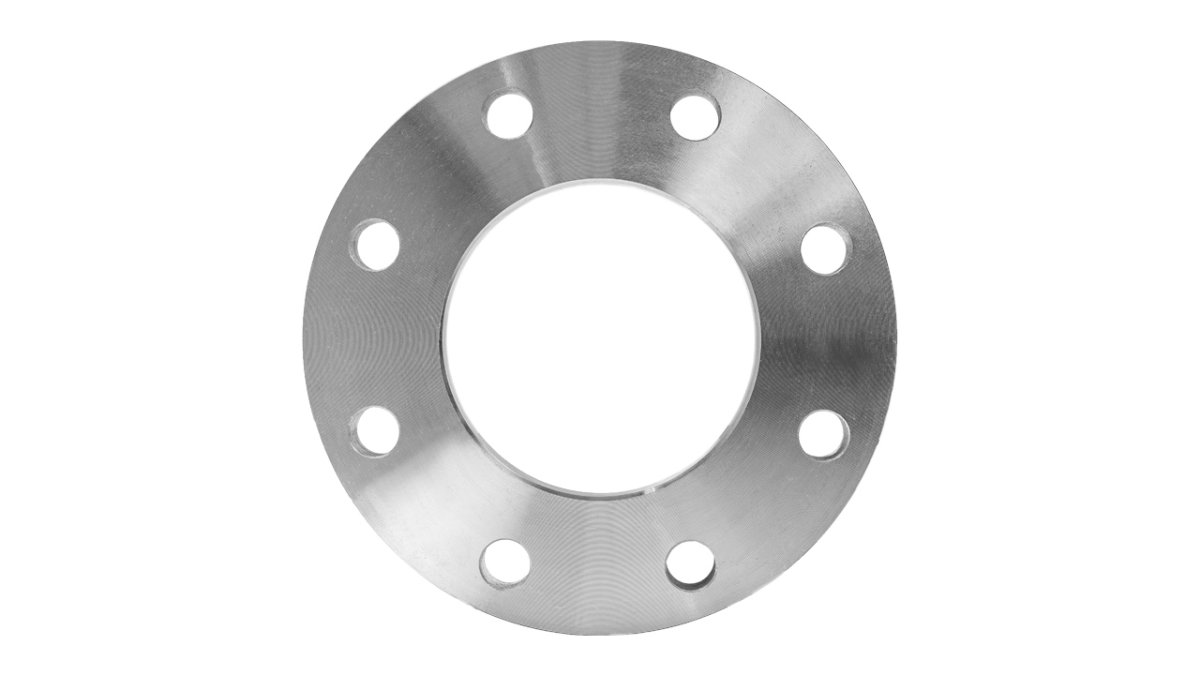

Loose flange | Type 02
Loose flanges according to EN1092-1 Type 02 (DIN 2641 - 2656) are often used in installations, piping systems or in equipment construction to weld on a pipe. Nijhuis & Wigger can supply suitable loose flanges for every quality, pipe size and pressure class.
- Available pressure classes PN 6 - PN 40
- Dimensions up to DN 600
- 45° welding end
- Stock item (see stock programme in downloads)
We deliver loose flanges in the following material grades:
| DIN standard | EN standard |
| Carbon steel | |
| C22.8 | P250GH |
| Rst 37.2 | S235JRG2 |
| 15Mo3 | 16Mo3 |
| 13CrMo44 | 13CrMo4-5 |
| W/TSTE 355 | P355QH1 |
| P355NL1 | |
| P355NH | |
| 10CrMo9-10 | 11CrMo9-10 |
| Stainless steel | |
| 1.4301 / 1.4307 / 1.4541 | |
| 1.1104 / 1.4404 / 1.4571 | |
| 1.4462 (Duplex) | |
| 1.4501 (Superduplex) |
According to the standard DIN/EN1092-1 loose flanges are separated in:
| DIN standard | EN standard | Type | Pressure |
| 2641 | EN 1092-1 | 02 | PN 6 |
| 2642 | EN 1092-1 | 02 | PN 10 |
| EN 1092-1 | 02 | PN 16 | |
| 2655 | EN 1092-1 | 02/32 | PN 25 |
| 2656 | EN 1092-1 | 02/32 | PN 40 |
Click on one of the PDF logos to start the download.
 |
Stock programme |
|
Delivery programme |
Machining loose flanges
according standard or specificationLoose flanges can be machined in several ways. For example machining the sealing surface or galvanizing.
View options
Custom made flanges
It is also possible to manufacture special flanges according to your wishes and drawings. Our sales team is happy to
assist you.
