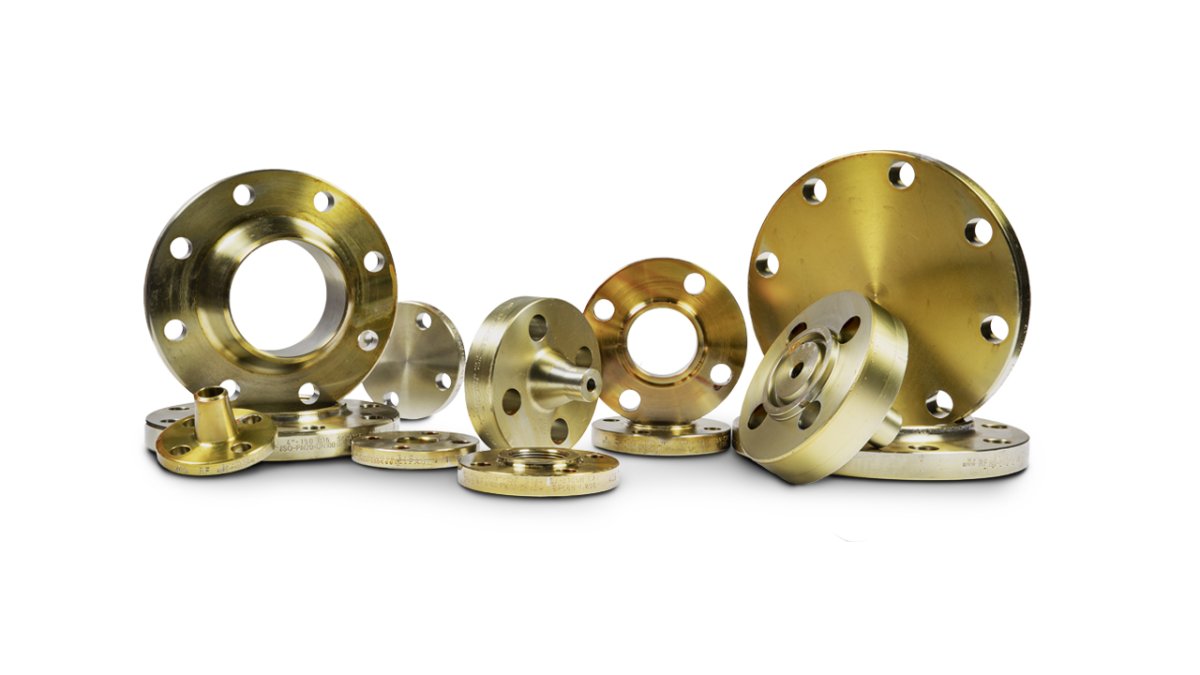

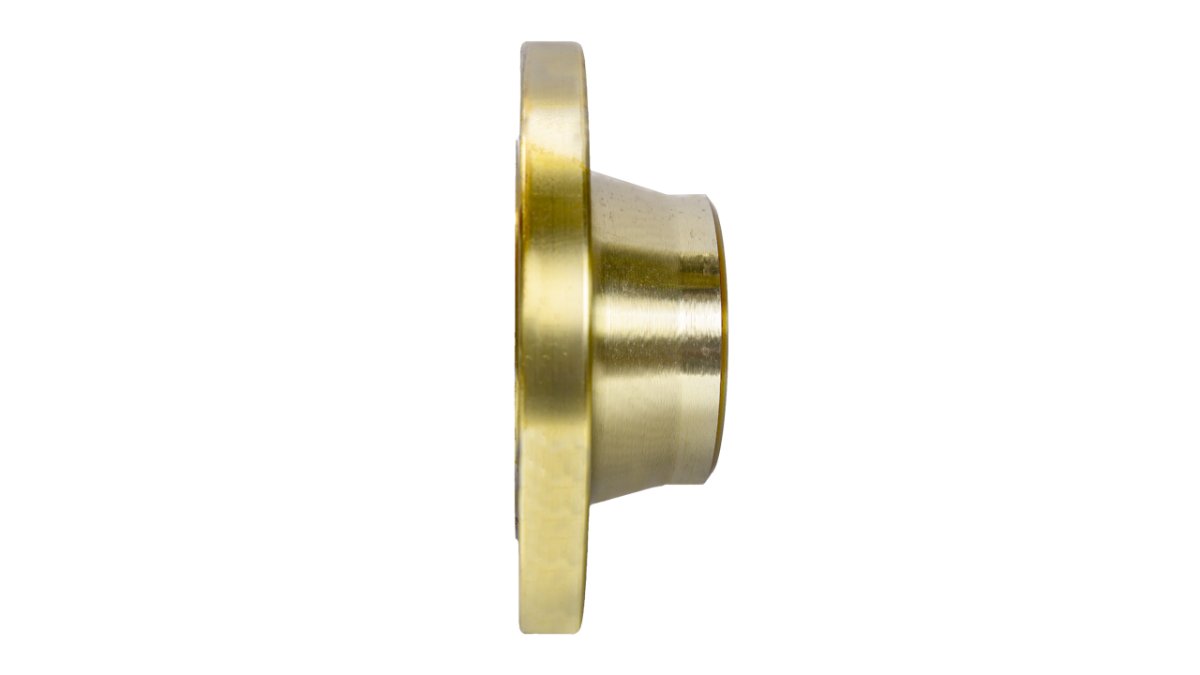

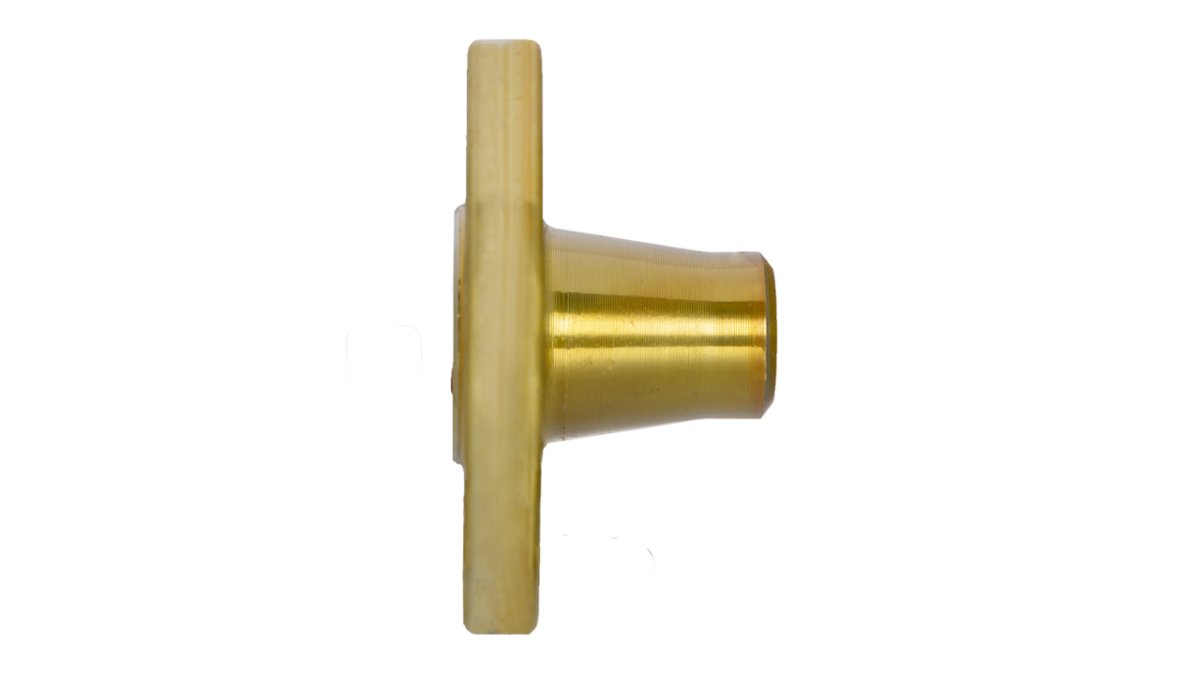

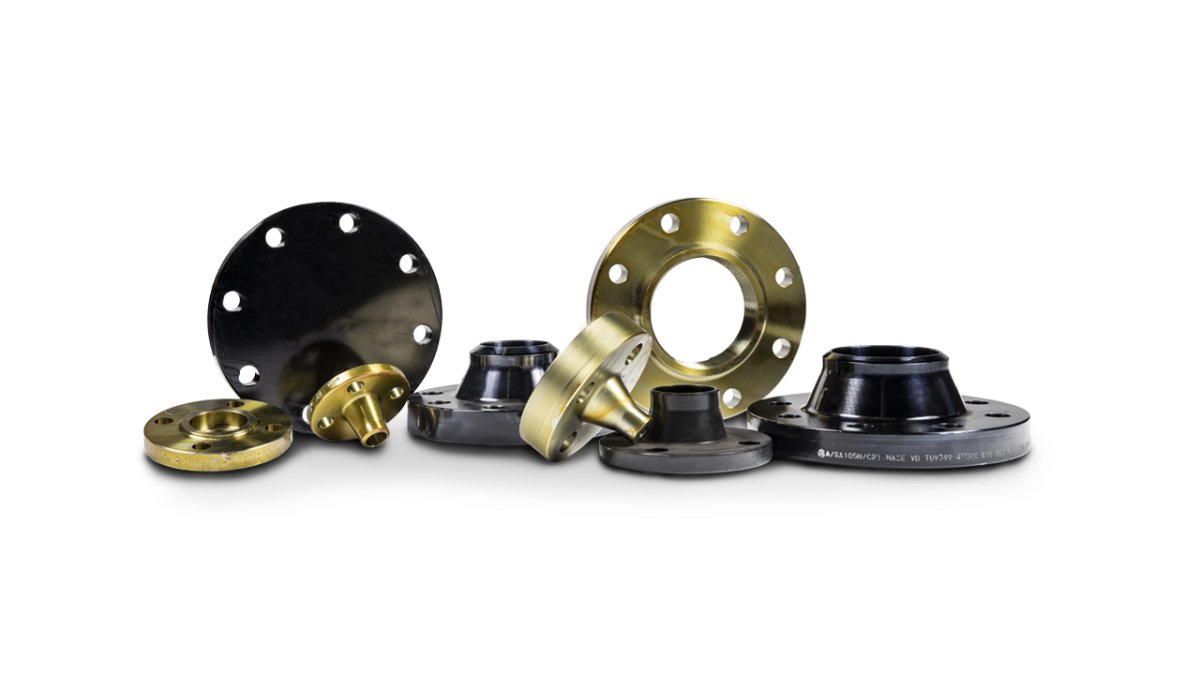

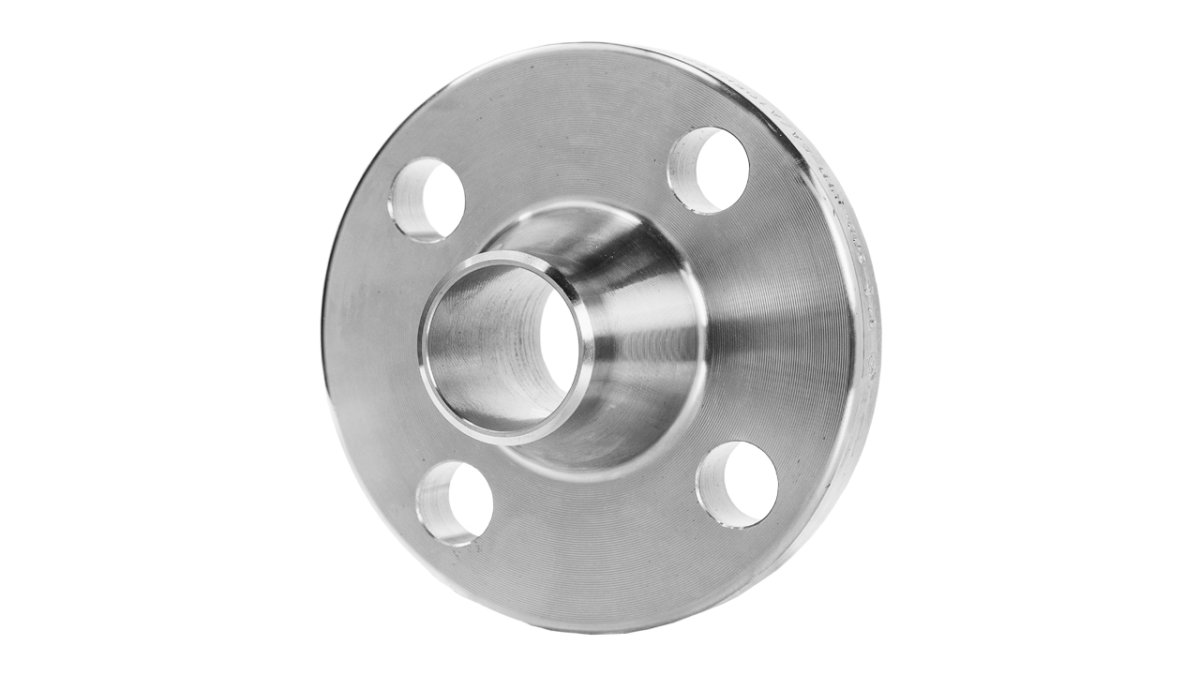

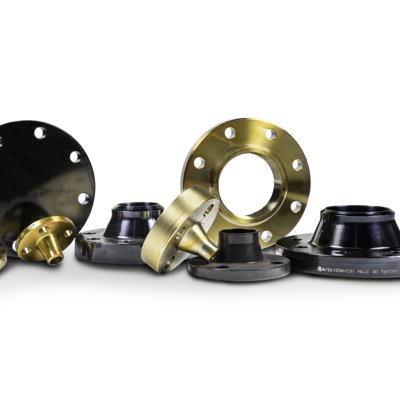

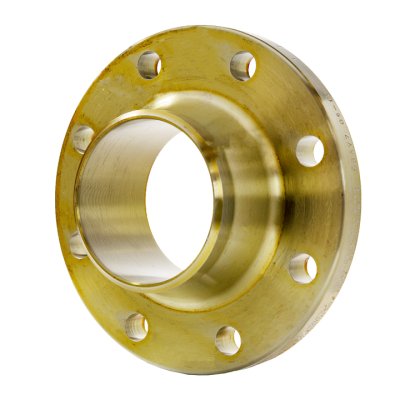

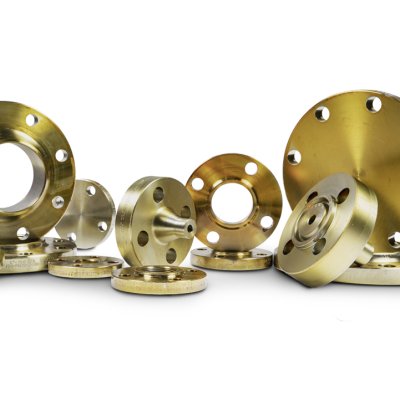

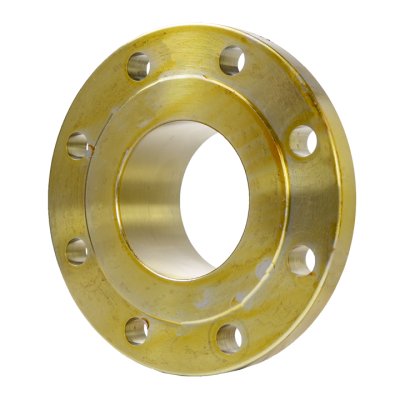

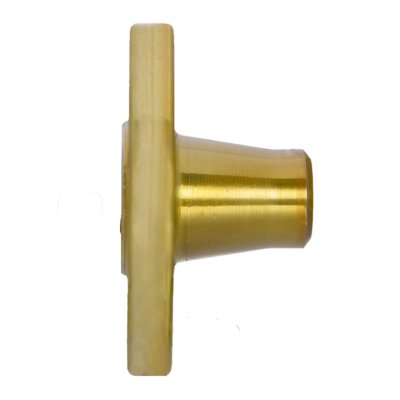

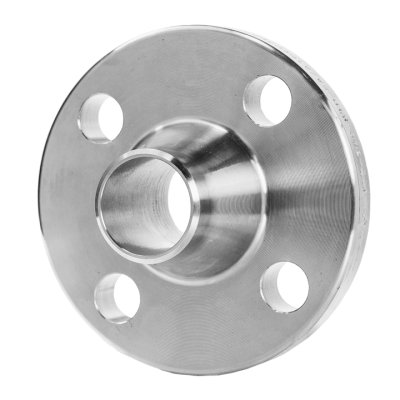

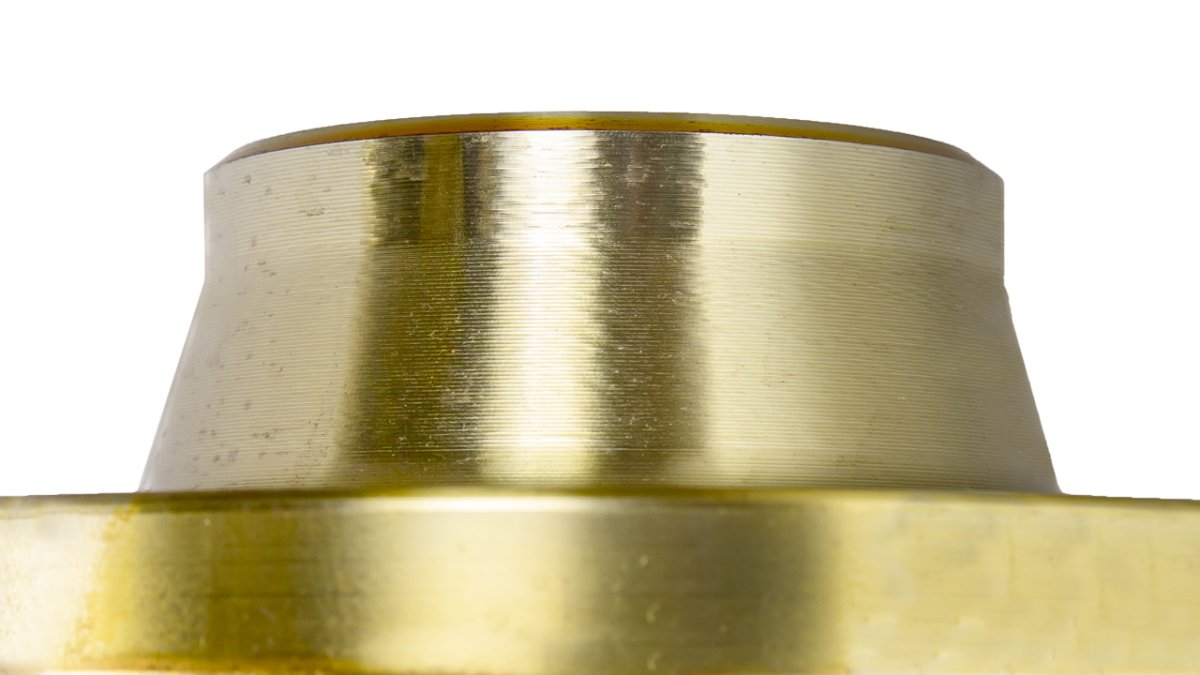

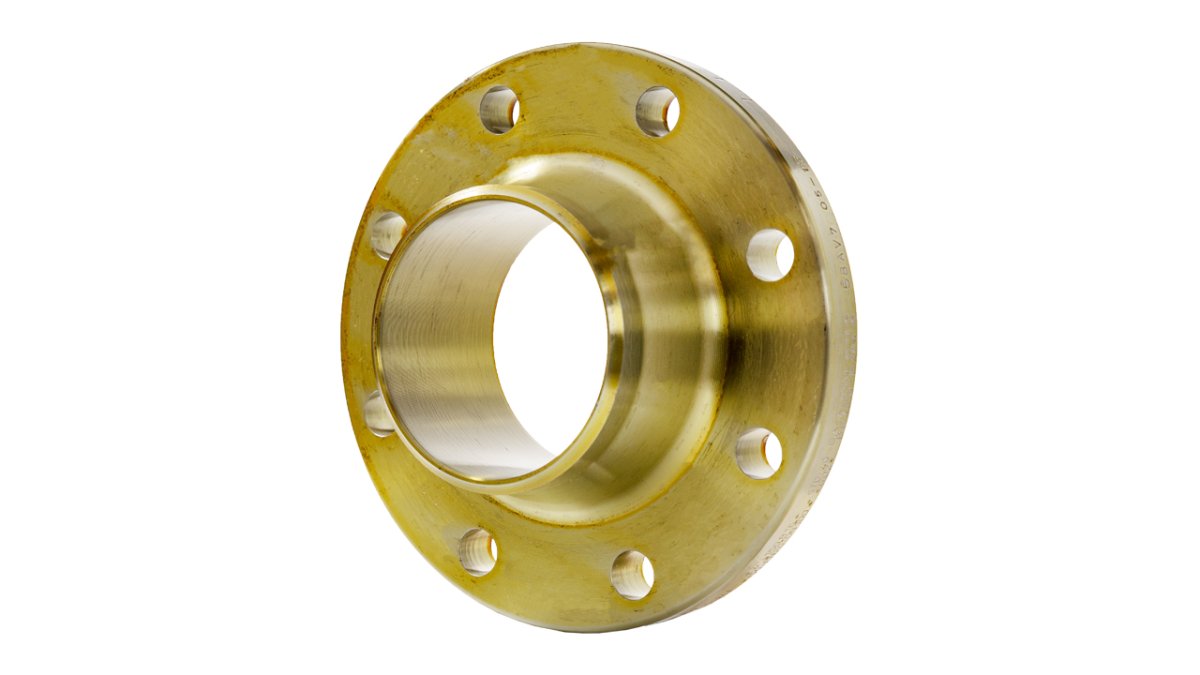

Welding Neck flange

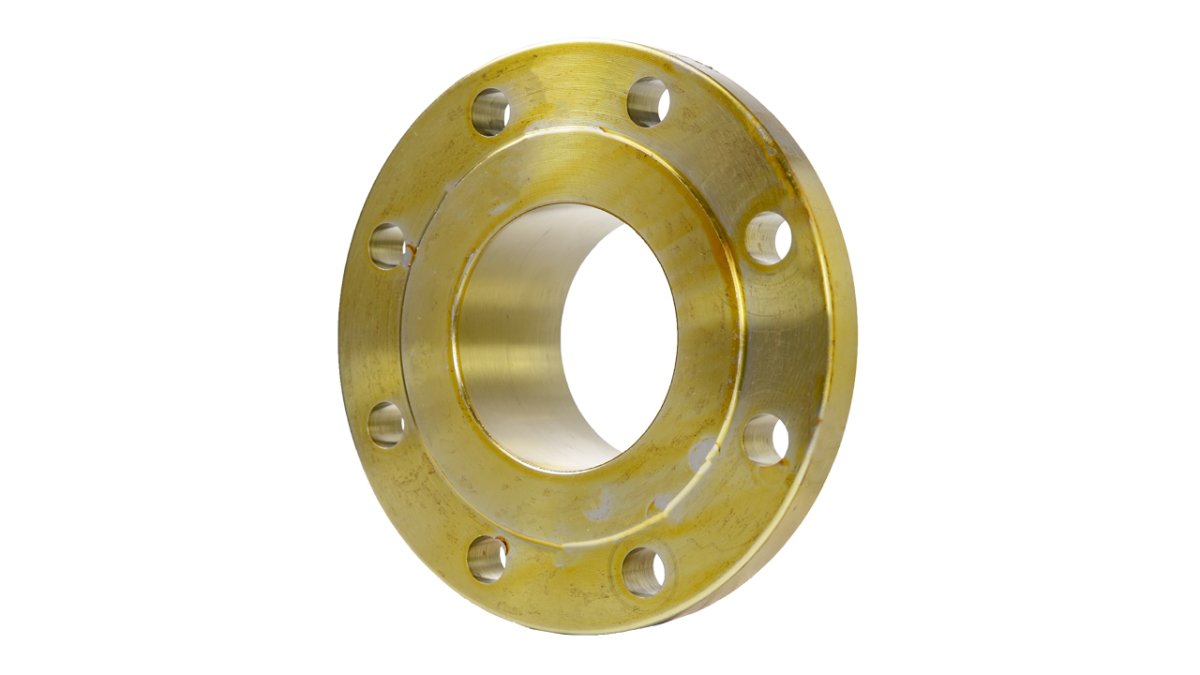

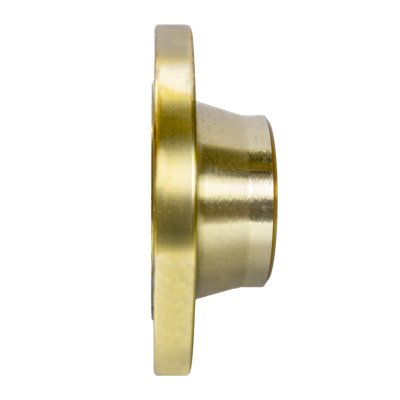

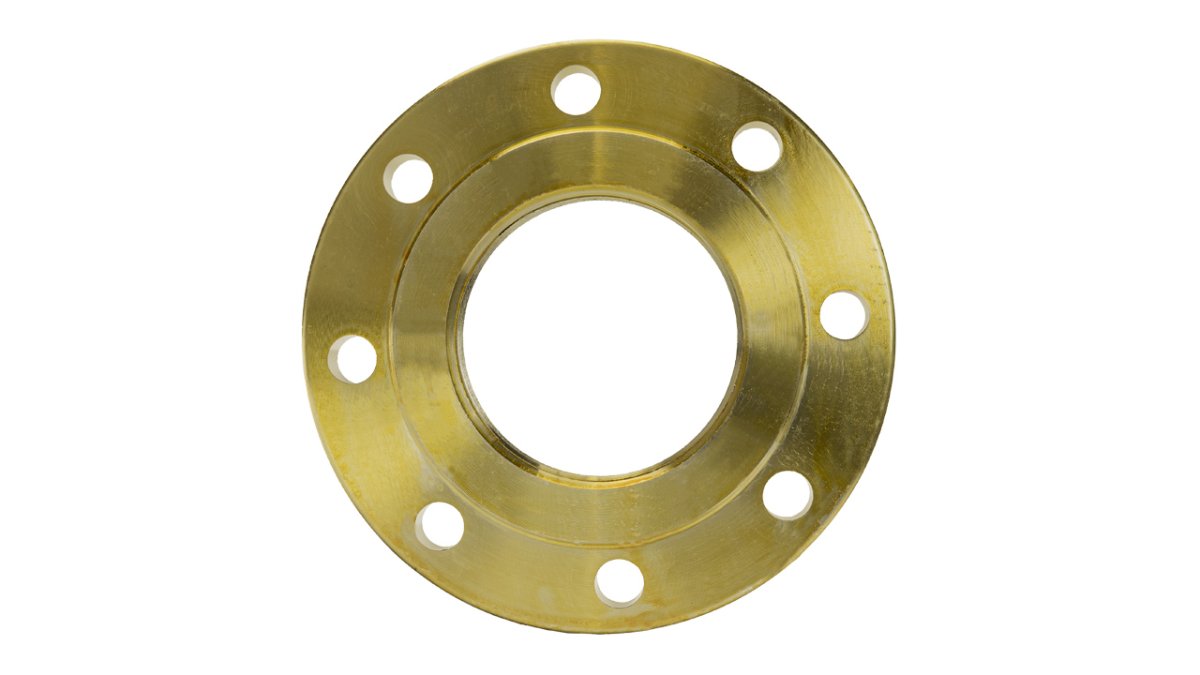

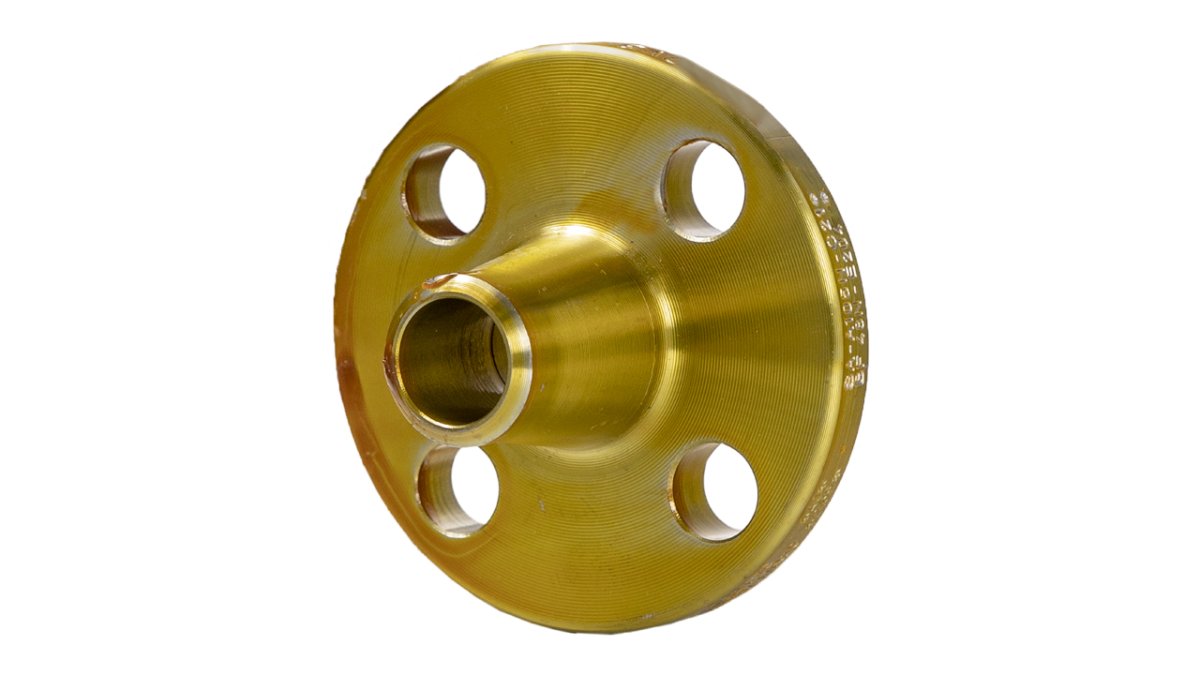

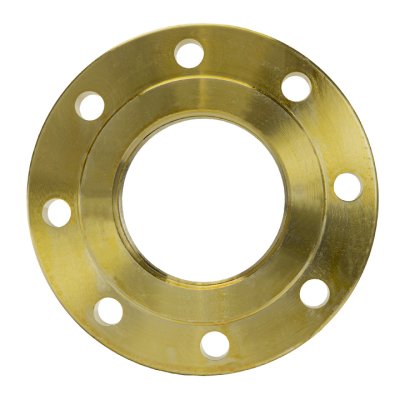

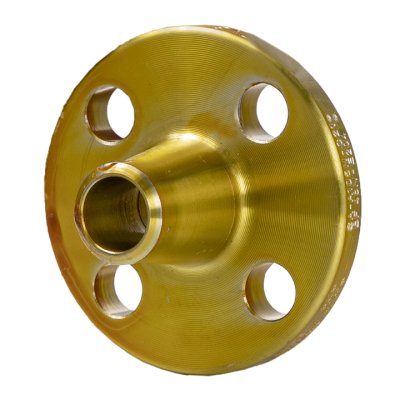

Welding Neck flanges according ASME B16.5 / B16.47 are often used in installations, piping systems, appendages or in equipment construction. Nijhuis & Wigger can supply suitable Welding Neck flanges for every quality, pipe size and pressure class.
- Available pressure classes: 150 lbs - 2500 lbs / 2.000 - 20.000 PSI
- Different schedule sizes available according ASME B 36.10 / 36.19
- Dimensions up to 60”
- Different sealing surfaces available like RF, FF, LRF, RTJ or according specification
- Stock item (see stock programme in downloads)
We deliver Welding Neck flanges in the following material grades:
| ASME standard |
| Carbon steel |
| A/SA105N / C21, P265GH |
| A/SA350 LF2 / P355QH1 |
| A/SA182 Gr. F1,F5,F9,F11,F12,F22,F91. |
| A694 Gr. F52,F60,F65,F70 |
| Stainless steel |
| A/SA182 Gr. 304/304L |
| A/SA182 Gr. 316/316L |
| A/SA182 F321(H) |
| F51(Duplex) / F53(Superduplex) |
| Special Alloys |
| Hastelloy C276/C22 |
According to the ASME standard Welding Neck flanges are separated in:
| ASME standard | Pressure class |
| B16.5 - B16.47 A/B | 150 lbs |
| B16.5 - B16.47 A/B | 300 lbs |
| B16.5 - B16.47 A/B | 400 lbs |
| B16.5 - B16.47 A/B | 600 lbs |
| B16.5 - B16.47 A/B | 900 lbs |
| B16.5 - B16.47 A/B | 1500 lbs |
| B16.5 - B16.47 A/B | 2500 lbs |
Click on one of the PDF logos to start the download.
 |
Schedule sizes |
|
Stock programme |
|
Delivery programme |
Machining Welding neck flanges

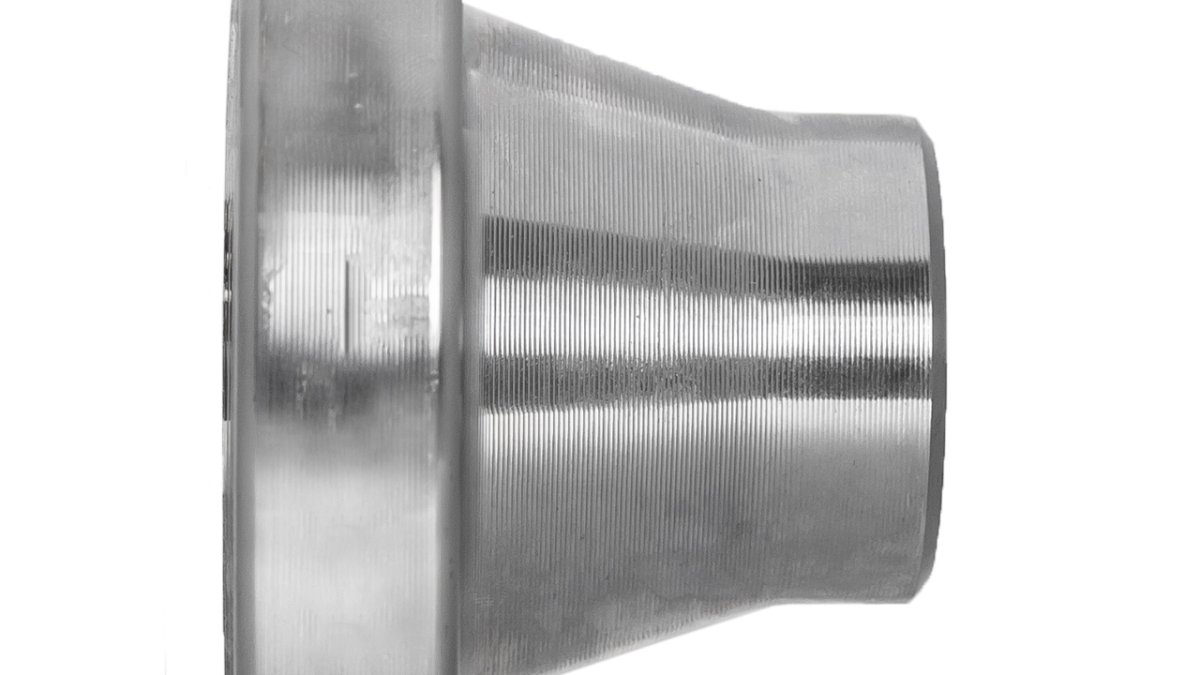

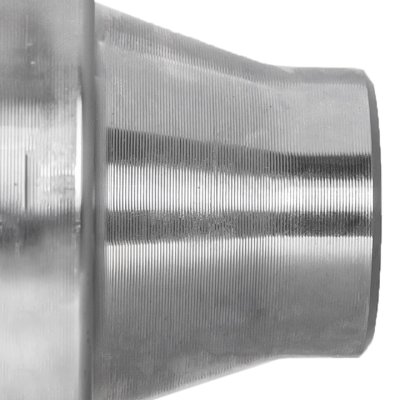

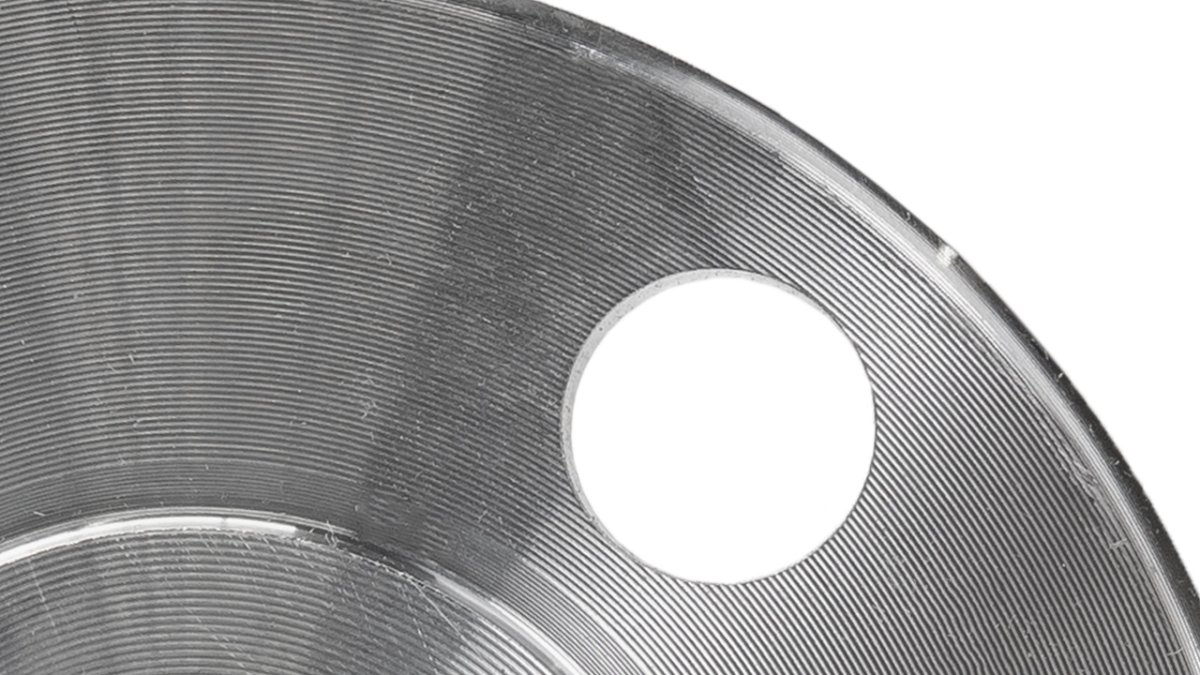

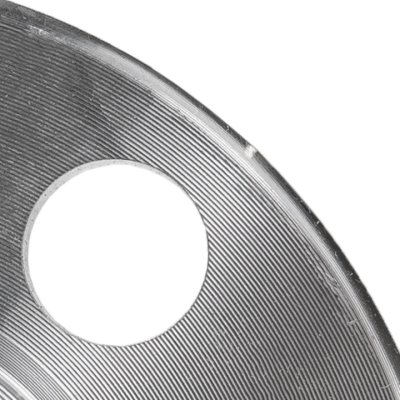

according standard or specificationWelding Neck flanges can be machined in several ways. For example machining the sealing surface to Smooth Finish (Ra.3.2-6.3) or changing the schedule size.
View options
Custom made flanges
It is also possible to manufacture special flanges according to your wishes and drawings. Our sales team is happy to
assist you.
