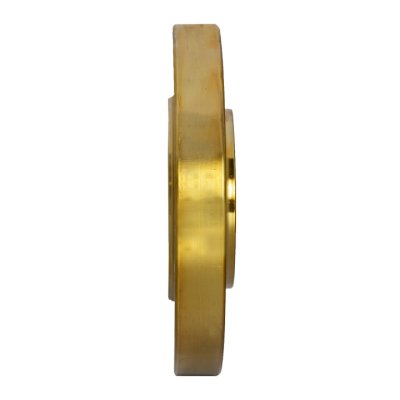

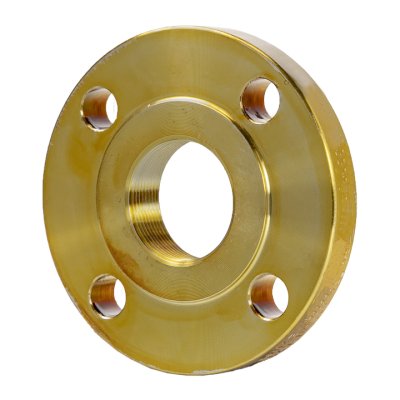

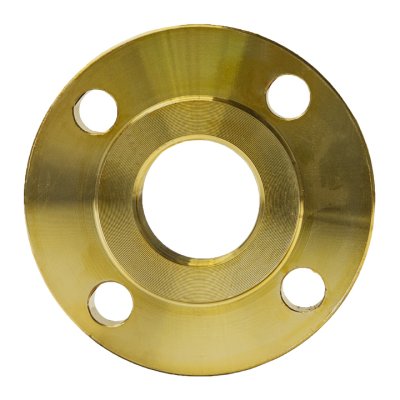

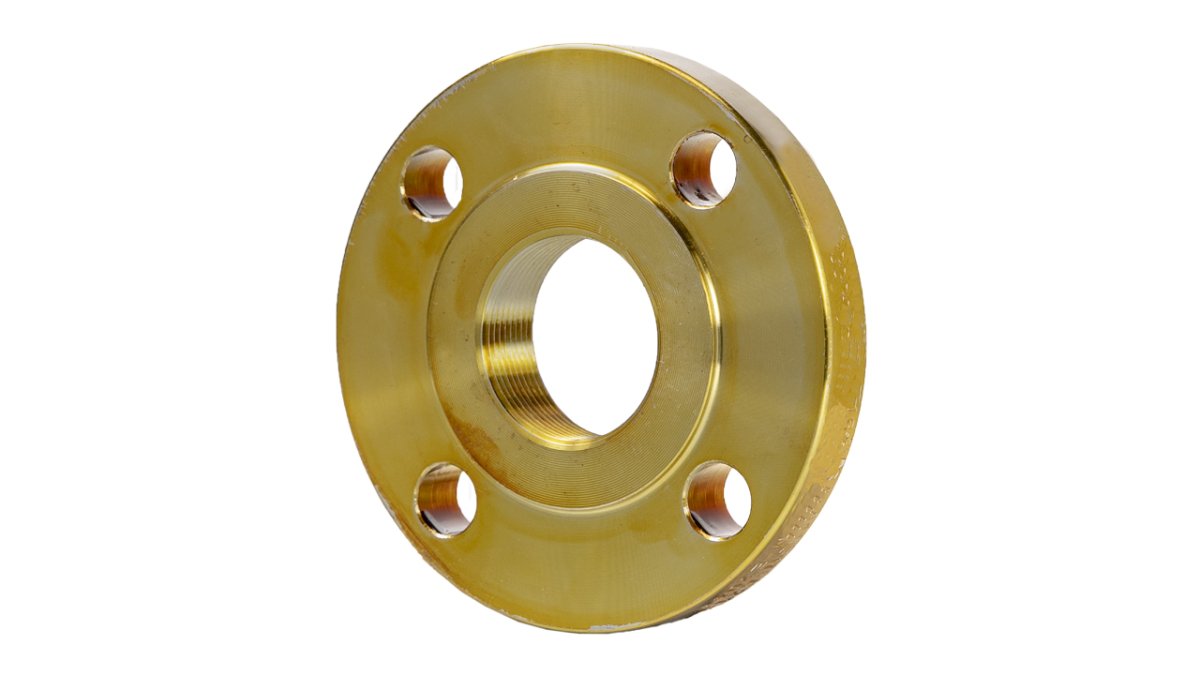

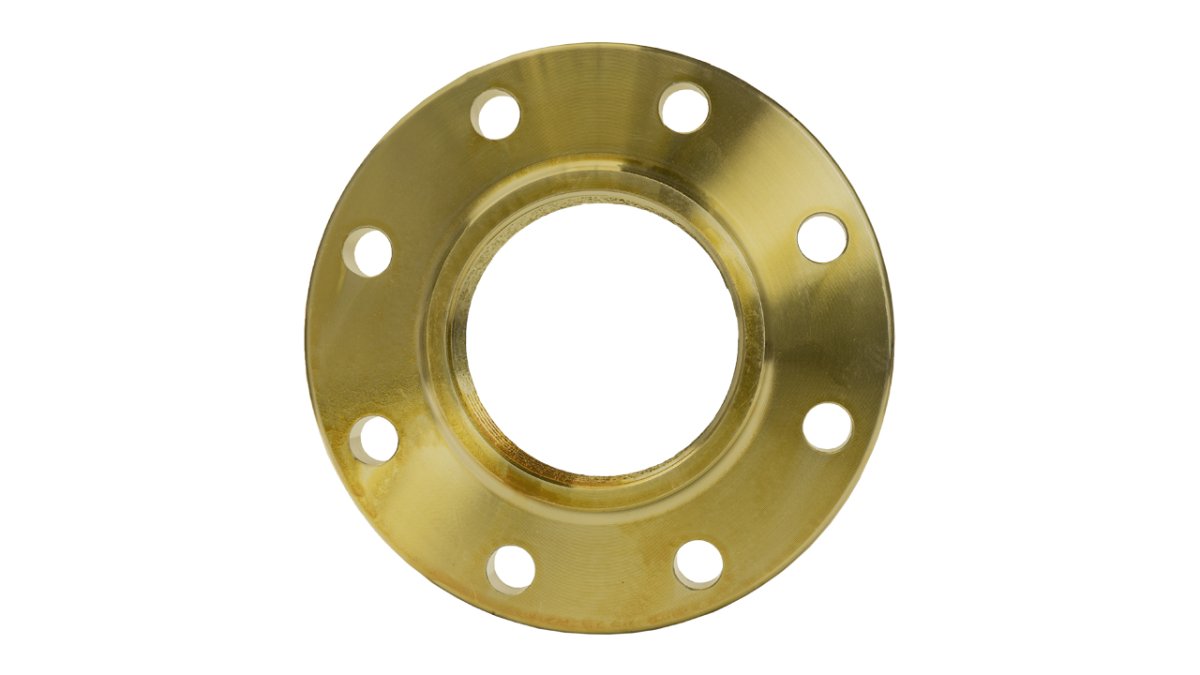

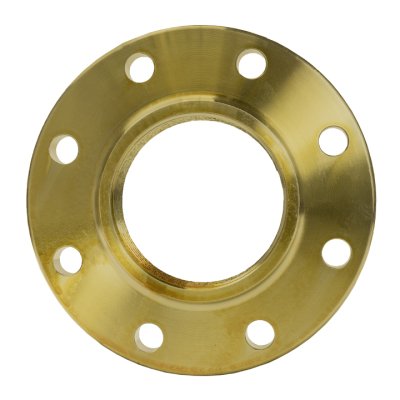

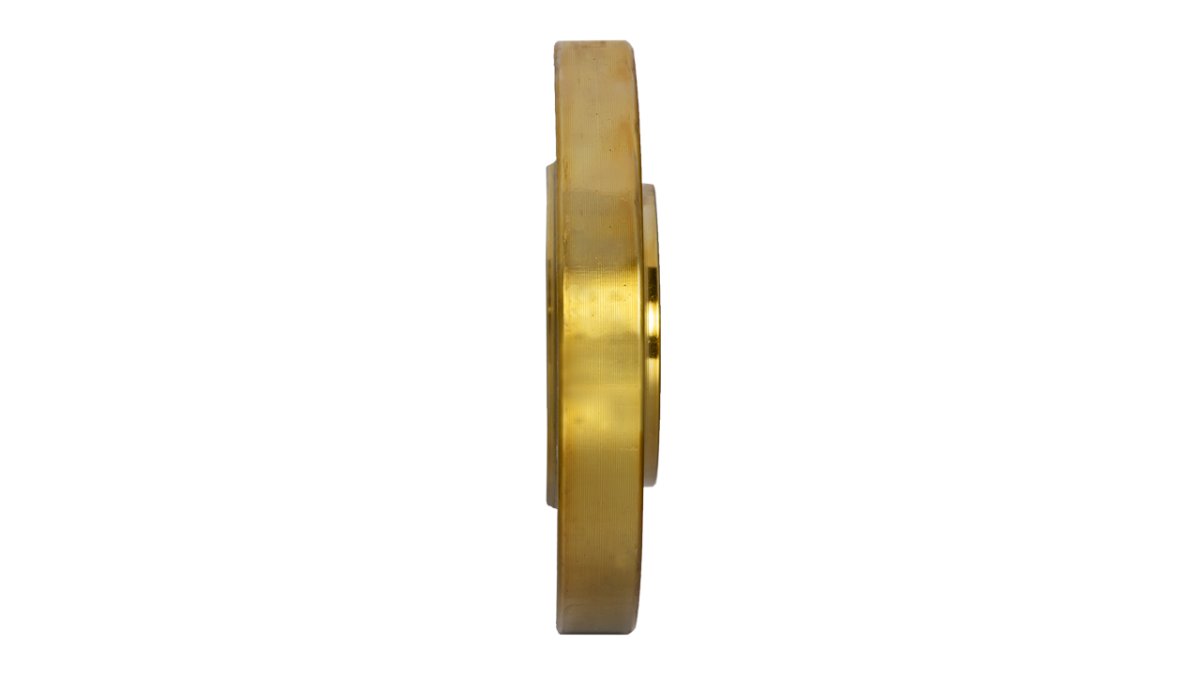

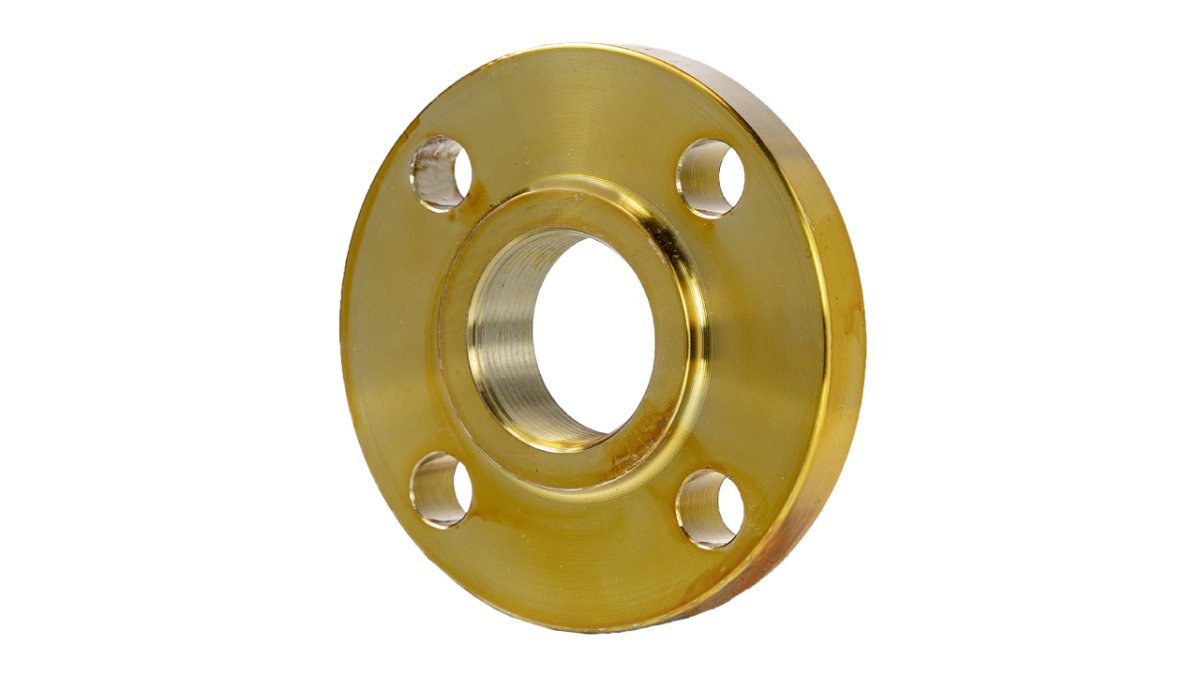

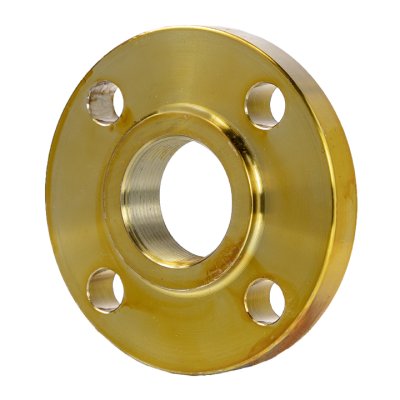

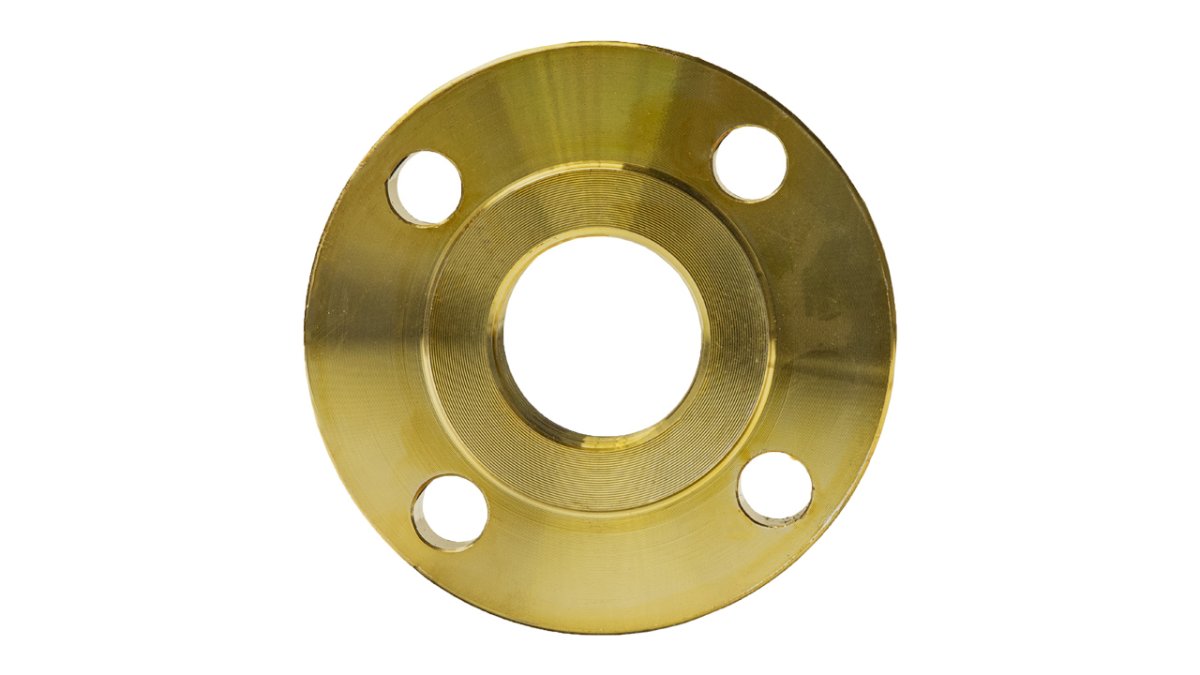

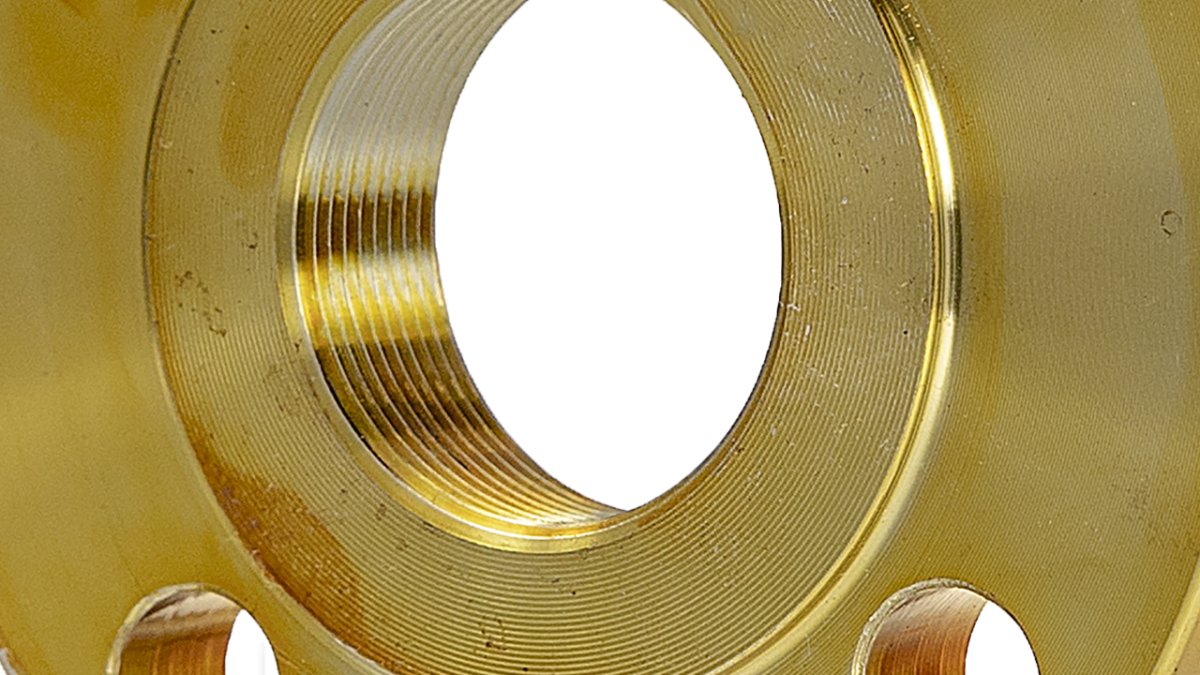

Threaded flange
Threaded flanges according ASME B16.5 are often used in installations, piping systems or equipment construction. These flanges are screwed onto the pipe ends using the screw thread. Nijhuis & Wigger can supply suitable threaded flanges for every quality, pipe size and pressure class.
- Available pressure classes: 150 lbs - 2500 lbs
- Dimensions up to 24”
- Different sealing surfaces available like RF or according specification

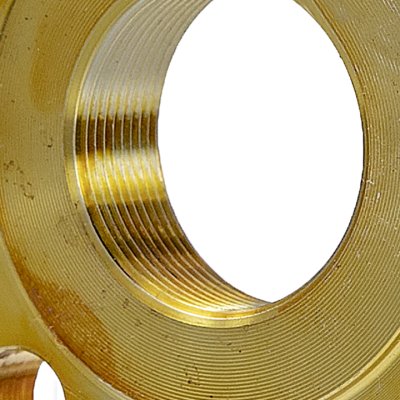

- NPT thread
- Stock item (see stock programme in downloads)
We deliver Threaded flanges in the following material grades:
| ASME standard |
| Carbon steel |
| A/SA105N / C21, P265GH |
| A/SA350 LF2 / P355QH1 |
| A/SA182 Gr. F1,F5,F9,F11,F12,F22,F91. |
| A694 Gr. F52,F60,F65,F70 |
| Stainless steel |
| A/SA182Gr. 304/304L |
| A/SA182Gr. 316/316L |
| A/SA182 F321(H) |
| F51(Duplex) / F53(Superduplex) |
| Special Alloys |
| Hastelloy C276/C22 |
According to the ASME standard Threaded flanges are separated in:
| ASME standard | Pressure class |
| B16.5 | 150 lbs |
| B16.5 | 300 lbs |
| B16.5 | 400 lbs |
| B16.5 | 600 lbs |
| B16.5 | 900 lbs |
| B16.5 | 1500 lbs |
| B16.5 | 2500 lbs |
Click on one of the PDF logos to start the download.
 |
Stock programme |
|
Delivery programme |
Machining Threaded flanges
according standard or specificationThreaded flanges can be machined in several ways. For example machining the sealing surface to Smooth Finish (Ra.3.2-6.3).
View options
Custom made flanges
It is also possible to manufacture special flanges according to your wishes and drawings. Our sales team is happy to
assist you.
